For the brushless motors we have an assortiment of motors which have earned their stars in the F3P flying with performance and quality.

We will be expanding the assortiment on a short term with other products in different priceranges.

Updating...

ePower X 2203/2300

F3P 3D motor from ePower with great perfomance and quality for a great value. This motor is for absolute traction and power for 3D flying. Suited for F3P models like Donuts Sultimate, Yak 55 FT, MX2 and Extra 300L.

More Details
SPECIFICATIONS
Weight: 18g
Kv: 2300 rpm / v
Current max.: 9.2 max 60 sec
Internal Res.: 0.156 Ohm
Io: 0.6A
No. of cells : 2s 7.4V
Diameter: 27.5mm x21mm
Axis: 3mm
For propellers: 8x4.3
Traction Static: 465g with GWS 8x4.3

Price: € 32.90

ePower X 2203/1700

F3P motor from ePower with great perfomance and quality for a great value.
Suited for F3P models like Donuts Sultimate, Yak 55 FT, MX2 and Extra 300L.

More Details
SPECIFICATIONS
Weight: 18g
Kv: 1700 rpm / v
Current max.: 8.5 max 60 sec
Internal Res.: 0.275 Ohm
Io: 0.5A
No. of cells : 2s 7.4V
Diameter: 27.5mm x21mm
Axis: 3mm
For propellers: 8x4.3
Traction Static: 370g with GWS 8x4.3

Price: € 32.90

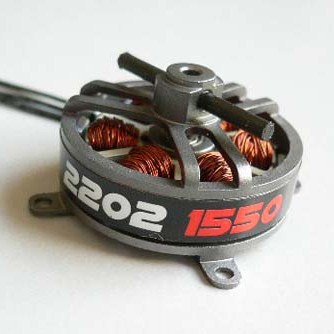

ePower X 2202/1550

The new X2202 from ePower; a little high quality brushless motor with great performance for a great price.

More Details
SPECIFICATIONS
Weight: 15.8g
Kv: 1550 rpm / v
Current max.: 6.8A max 60 sec
Internal Res.: 0.320 Ohm
Io: 0.3A
No. of cells : 2s 7.4V
Diameter: 27.5mm
Axis: Carbon 2mm
For propellers: 8x4.3
Traction Static: 320g with GWS 8x4.3

Price: € 32.90

AXI 2204/54 GOLD LINE

This improved and more powerful brushless motor with neodymium magnets and a rotating case was designed especially for the fast growing area of indoor aerobatic models.

More Details
The AXI2204/54 GOLD LINE is very light (under 26g including prop saver and cables) and offers different mounting options. The integral prop saver makes the fitting of propellers very easy, and is safe for both the model and the propeller if they are involved in a hard landing which can happen indoors. Although the construction of the motor is very light, the motor is still robust, and the hardened steel shaft is supported by two ball bearings. This motor is suitable for indoor or outdoor aerobatic models weighing up to 280g.

Specifications:
No. of cells 2-3 Li-Poly
RPM/V 1400 RMP/V
Max. efficiency 77%
Max. efficiency current 2 - 6 A (>67%)
No load current / 10 V 0,35 A
Current capacity 7,5 A/30 s
Internal Resistance 320 mohm
Dimensions (diameter. x lenght) 27,5x23 mm
Shaft diameter 3,17 mm
Weight with cables 25,9 g

Price: € 57.95

CBM F3P

New brushless motor technology LRK with ceramic bearings. Especially suitable for indoor flight and F3P. His weight of 14g allows him to fly virtually all indoor F3P aircraft today; static tension between 220-240g. Its low powerconsumption allows the use of low-capacity batteries and the low Kv allows him to turn the propellers of large diameter.

More Details
SPECIFICATIONS
Weight: 14.5g
Kv: 1450 rpm / v
Max.: 6.5A
Current Cont.: 3A
Internal Res.: 0.410 Ohm
Io: 0.4A
No. of cells : 2s 7.4V
Diameter: 26.5mm
Axis: Carbon 2mm
For propellers: 7x3.5 to 8x4.3
Traction Static: 220-240g with GWS 8x4.3

Availbe week 52-2008

Price: € 49.95

AXI 2203/RACE GOLD LINE

New very light and powerful motor AXI 2203/RACE GOLD LINE with carbon shaft, integrated prop saver and three-point mounting lugs reach just 18g in weight. This motor was tuned by Gernot Bruckmann especially for area of fast indoor aerobatic models.

More Details
Three-point mounting lugs allows easy mounting to the fuselage of model and fast centering of motor. 3mm best quality carbon shaft is supported by two ball bearings. This motor is suitable particularly for light AIR RACE and fast aerobatic indoor models up to 170g in weight.

Specifications:
No. of cells 2 Li-Poly
RPM/V 2300 RMP/V
Max. efficiency 74%
Max. efficiency current 3 - 7,5 A (>69%)
No load current / 8 V 0,55 A
Current capacity 9 A/20 s
Internal Resistance 220 mohm
Dimensions (diameter. x lenght) 27,7x21 mm
Shaft diameter carbon 3 mm
Weight with cables 18,5 g

Price: € 54.95

AXI 2203/52 GOLD LINE

New very light motor AXI 2203/52 GOLD LINE with carbon shaft, integrated prop saver and three-point mounting lugs reach just 18g in weight. This motor was designed especially for area of the lightest indoor aerobatic models.

More Details
New three-point mounting lugs allows easy mounting to the fuselage of model and fast centering of motor. 3mm best quality carbon shaft is supported by two ball bearings. This motor is suitable particularly for light 3D and aerobatic indoor models up to 190g in weight.

Specifications:
No. of cells 2 Li-Poly
RPM/V 1525 RMP/V
Max. efficiency 74%
Max. efficiency current 2 - 5,5 A (>69%)
No load current / 8 V 0,4 A
Current capacity 7 A/20 s
Internal Resistance 390 mohm
Dimensions (diameter. x lenght) 27,5x21 mm
Shaft diameter 3 mm
Weight with cables 18,5 g

Price: € 54.95

AXI 2203/46 GOLD LINE

New very light motor AXI 2203/46 GOLD LINE with carbon shaft, integrated prop saver and three-point mounting lugs reach just 18g in weight. This motor was designed especially for area of the lightest indoor aerobatic models.

More Details
New three-point mounting lugs allows easy mounting to the fuselage of model and fast centering of motor. 3mm best quality carbon shaft is supported by two ball bearings. This motor is suitable particularly for light 3D and aerobatic indoor models up to 220g in weight.

Specifications:
No. of cells 2 Li-Poly
RPM/V 1720 RMP/V
Max. efficiency 75%
Max. efficiency current 2,5 - 7 A (>69%)
No load current / 8 V 0,5 A
Current capacity 8,5 A/20 s
Internal Resistance 285 mohm
Dimensions (diameter. x lenght) 27,5x21 mm
Shaft diameter 3 mm
Weight with cables 18,5 g

Price: € 54.95
