Modelmotors has specialised in the development and production of electric motors for use in models of all types. AXI motors are produced to the very highest standards using the very latest materials as they become available and AXI motors are continually being improved as the result of their considerable experience with these motors. Among the main benefits of AXI outrunner motors is the very high efficiency through a wide range of loads resulting in longer flight times. AXI motors with a rotating case have high torque characteristics and the ability to turn large diameter and high pitch propellers with high efficiency on direct drive. AXI outrunners can operate at higher current levels and offer a very good weight/power ratio.

AXI motors with their high quality of manufacturing, reliability and high technical specification are the best available on the market.

Updating...

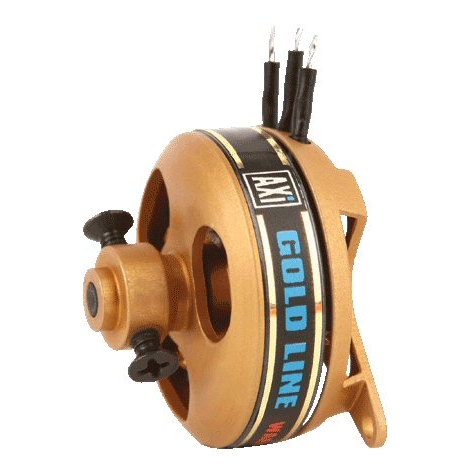

AXI 2203/46 GOLD LINE

New very light motor AXI 2203/46 GOLD LINE with carbon shaft, integrated prop saver and three-point mounting lugs reach just 18g in weight. This motor was designed especially for area of the lightest indoor aerobatic models.

More Details
New three-point mounting lugs allows easy mounting to the fuselage of model and fast centering of motor. 3mm best quality carbon shaft is supported by two ball bearings. This motor is suitable particularly for light 3D and aerobatic indoor models up to 220g in weight.

Specifications:
No. of cells 2 Li-Poly
RPM/V 1720 RMP/V
Max. efficiency 75%
Max. efficiency current 2,5 - 7 A (>69%)
No load current / 8 V 0,5 A
Current capacity 8,5 A/20 s
Internal Resistance 285 mohm
Dimensions (diameter. x lenght) 27,5x21 mm
Shaft diameter 3 mm
Weight with cables 18,5 g

Price: € 54.95

AXI 2203/52 GOLD LINE

New very light motor AXI 2203/52 GOLD LINE with carbon shaft, integrated prop saver and three-point mounting lugs reach just 18g in weight. This motor was designed especially for area of the lightest indoor aerobatic models.

More Details
New three-point mounting lugs allows easy mounting to the fuselage of model and fast centering of motor. 3mm best quality carbon shaft is supported by two ball bearings. This motor is suitable particularly for light 3D and aerobatic indoor models up to 190g in weight.

Specifications:
No. of cells 2 Li-Poly
RPM/V 1525 RMP/V
Max. efficiency 74%
Max. efficiency current 2 - 5,5 A (>69%)
No load current / 8 V 0,4 A
Current capacity 7 A/20 s
Internal Resistance 390 mohm
Dimensions (diameter. x lenght) 27,5x21 mm
Shaft diameter 3 mm
Weight with cables 18,5 g

Price: € 54.95

AXI 2203/RACE GOLD LINE

New very light and powerful motor AXI 2203/RACE GOLD LINE with carbon shaft, integrated prop saver and three-point mounting lugs reach just 18g in weight. This motor was tuned by Gernot Bruckmann especially for area of fast indoor aerobatic models.

More Details
Three-point mounting lugs allows easy mounting to the fuselage of model and fast centering of motor. 3mm best quality carbon shaft is supported by two ball bearings. This motor is suitable particularly for light AIR RACE and fast aerobatic indoor models up to 170g in weight.

Specifications:
No. of cells 2 Li-Poly
RPM/V 2300 RMP/V
Max. efficiency 74%
Max. efficiency current 3 - 7,5 A (>69%)
No load current / 8 V 0,55 A
Current capacity 9 A/20 s
Internal Resistance 220 mohm
Dimensions (diameter. x lenght) 27,7x21 mm
Shaft diameter carbon 3 mm
Weight with cables 18,5 g

Price: € 54.95

AXI 2204/54 GOLD LINE

This improved and more powerful brushless motor with neodymium magnets and a rotating case was designed especially for the fast growing area of indoor aerobatic models.

More Details
The AXI2204/54 GOLD LINE is very light (under 26g including prop saver and cables) and offers different mounting options. The integral prop saver makes the fitting of propellers very easy, and is safe for both the model and the propeller if they are involved in a hard landing which can happen indoors. Although the construction of the motor is very light, the motor is still robust, and the hardened steel shaft is supported by two ball bearings. This motor is suitable for indoor or outdoor aerobatic models weighing up to 280g.

Specifications:
No. of cells 2-3 Li-Poly
RPM/V 1400 RMP/V
Max. efficiency 77%
Max. efficiency current 2 - 6 A (>67%)
No load current / 10 V 0,35 A
Current capacity 7,5 A/30 s
Internal Resistance 320 mohm
Dimensions (diameter. x lenght) 27,5x23 mm
Shaft diameter 3,17 mm
Weight with cables 25,9 g

Price: € 57.95
